Output

NanoPrePro produces two types of output files:

Processed FASTQ with per-read annotations
HTML report summarizing pre-processing results

Processed FASTQ

NanoPrePro appends pre-processing annotations to the FASTQ read IDs. These annotations use standardized flags, summarized below:

flag	regex	default	explanation
`strand`	-?d+.d*	0	0: unknown; > 0: sense; < 0: antisense
`full_length`	[0\|1]	0	0: non-full-length; 1: full-length
`fusion`	[0\|1]	0	0: non-chimeric/fusion; 1: chimeric/fusion
`ploc5`	-?d+	-1	-1: unknown; 0: removed; > 0: 5’ adapter/primer location
`ploc3`	-?d+	-1	-1: unknown; 0: removed; > 0: 3’ adapter/primer location
`poly5`	-?d+	0	0: unknown; > 0: 5’ poly length; < 0: trimmed 5’ poly
`poly3`	-?d+	0	0: unknown; > 0: 3’ poly length; < 0: trimmed 3’ poly

Example

@read_1 strand=0.91 full_length=1 fusion=0 ploc5=0 ploc3=0 poly5=0 poly3=-20
AGAGGCTGGCGGGAACGGGC......TTTCAAAGCCAGGCGGATTC
+
+,),+'$)'%671*%('&$%......((&'(*($%$&%&$-((84*

This example shows that read_1 is:

Sense strand (strand=0.91)
Full-length (full_length=1)
Non-chimeric (fusion=0)
Adapter/primer removed (ploc5=0 ploc3=0)
PolyA trimmed (poly3=-20)

HTML report

The HTML report provides an overview of pre-processing results, including:

Quality score histograms
Proportion of filtered/passed full-length, truncated, and chimeric reads
Simulated real/random adapter/primer alignment results with interactive cutoff exploration

Choosing Cutoffs from Simulated Real/Random Alignment Results

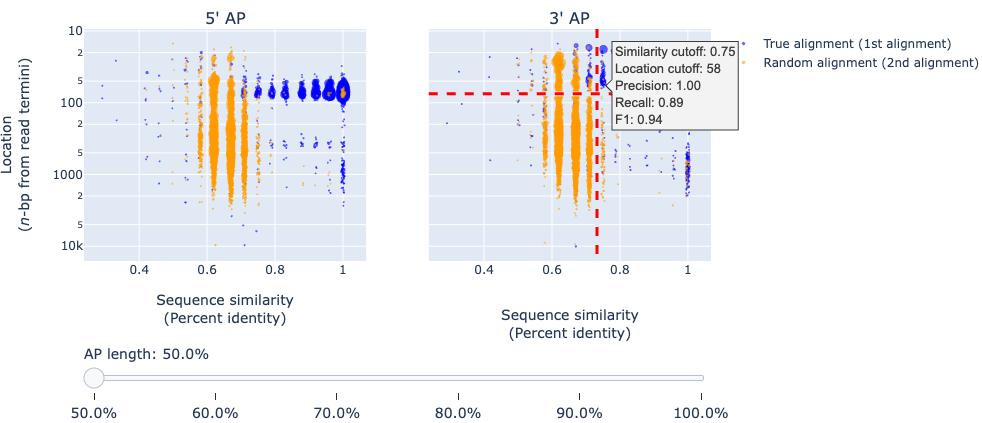

The report includes an interactive plot of simulated true and random alignments.

X-axis: sequence similarity
Y-axis: aligned location
Blue dots: true alignments
Orange dots: random alignments

A slider allows switching between results for different adapter/primer substring lengths. Hovering over the plot displays precision, recall, and F-score under specific cutoff settings.

Guidelines

Higher precision: use higher sequence similarity cutoffs and longer adapter/primer substrings.
Higher recall: use lower similarity cutoffs and shorter adapter/primer substrings.

⚠️ Note: Increasing adapter/primer length too far can be counterproductive. Basecalling accuracy often drops near read termini, making the last nucleotides unreliable. Stop increasing the adapter/primer length once most blue dots begin deviating from sequence similarity = 1.
